Excavator

/images/hthththt.png

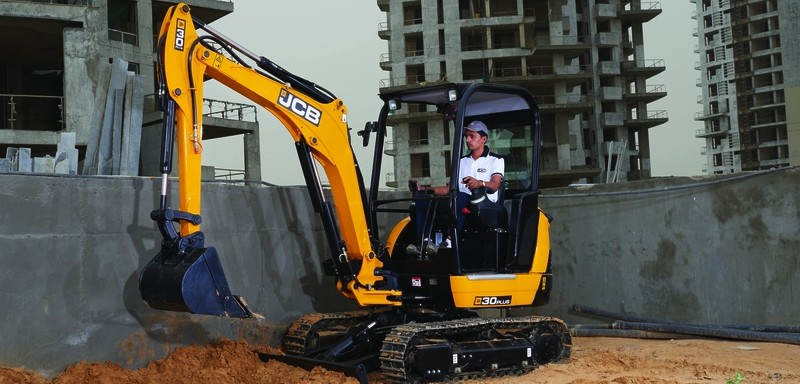

JCB MINI Excavator

JCB mini excavators are aimed at intensifying urban infrastructure of the nation by catalysing development across the fields. You can help redefine the nation’s landscape with JCB mini excavators on your side.

  • Model

  • Max. Engine Power
  • Buckte Capacity
  • Max. Dig Depth
  • Max. Dump Height
  • Max. Operating Weight

  • 30 PLUS

  • 18.4 Kw (24.7 HP)
  • 0.08 m³
  • 3.05 m
  • 3.22 m
  • 2,870 kg

  • 35 PLUS

  • 18.9 Kw (25.34 HP)
  • 0.11 m³
  • 3.19 m
  • 3.38 m
  • 3,790 kg

  • JCB 50Z

  • 35.7 Kw (47.87 HP)
  • 0.14 - 0.22 m³
  • 3.53 m
  • 4.0 m
  • 4,946 kg

  • JCB 55Z

  • 35.7 Kw (47.87 HP)
  • 0.14 - 0.22 m³
  • 3.84 m
  • 4.27 m
  • 5,520 kg
/images/Exc-2.pngPopular

JCB Standard Excavators

The best-in-class range of JCB excavators comprises heavy-duty excavators that exhibit maximum performance, strength, efficiency and productivity. For over four decades, JCB has been a name to be reckoned with among the excavator manufacturer.

  • Model

  • Max. Engine Power
  • Bucket Capacity
  • Max. Dig Depth
  • Max. Dump Height
  • Max. Operating Weight

  • JCB 8I eco+

  • 37 Kw (49 HP)
  • 0.24 - 0.35 m³
  • 4.01 m
  • 5.13 m
  • 7,850 kg

  • JCB 130

  • 60 Kw (80 HP)
  • 0.50 - 0.65 m³
  • 4.83 m
  • 6.12 m
  • 12,800 kg

  • JCB NXT 140

  • 75 Kw (100 HP)
  • 0.63 - 0.72 m³
  • 5.2 m
  • 6.37 m
  • 14,320 kg

  • JCB NXT 215LC

  • 104 Kw (140 HP)
  • 0.9 - 1.02 m³
  • 6.14 - 6.73 m
  • 6.36 - 6.49 m
  • 21,500 kg

  • JCB NXT 225LCM

  • 110 Kw (148 HP)
  • 0.9 - 1.05 m³
  • 6.14 - 6.73 m
  • 6.36 - 6.49 m
  • 22,200 kg

  • JCB NXT 345 LCHD

  • 165 Kw (221 HP)
  • 1.24 -1 .8 m³
  • 6.57 - 7.17 m
  • 6.9 - 7.23m
  • 32,940 kg

  • JCB 520X LC

  • 298 Kw (400 HP)
  • 2.8 -3.4 m³
  • 6.80 - 7.25 m
  • 7.29 - 7.53 m
  • 52 000 - 54 000 kg
/images/Long-boom.pngPopular

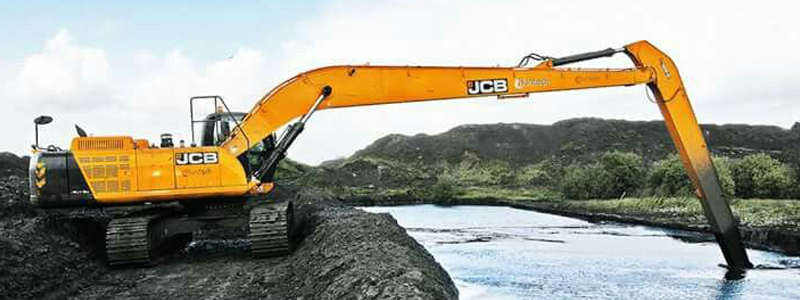

JCB Long Reach Excavator

Reach far with the NXT level of excavator - the JCB Long-Reach Excavators With improved reliability and durability in canal, well digging, river cleaning & Material Handling applications. Designed for efficiency and powered by intelligent features.

  • Model

  • Max. Engine Power
  • Bucket Capacity
  • Max. Dig Reach
  • Max. Dig Depth
  • Max. Operating Weight

  • JCB NXT 245HDLR

  • 104 Kw (140 HP)
  • 0.45 m³
  • 15.62 m (51.24 ft)
  • 12.04 m (39.50 ft)
  • 23,850 kg

  • JCB NXT 290LR

  • 110 Kw (148 HP)
  • 0.5 m³
  • 20.10 m (65.94 ft)
  • 17.06 m (55.99 ft)
  • 29,000 kg

JCB Excavators: Power, Precision, and Performance for Every Project

JCB Excavators are engineered to deliver outstanding performance, fuel efficiency, and reliability across a wide range of construction, infrastructure, mining, and industrial applications. Built with advanced technology and robust components, JCB excavators provide the power and precision needed to handle demanding jobs while minimizing operating costs.

From earthmoving and excavation to demolition and material handling, JCB Excavators are designed to maximize productivity and deliver exceptional value throughout their lifecycle.

Powerful Performance

Equipped with advanced JCB diesel engines and efficient hydraulic systems, JCB Excavators deliver high digging force, faster cycle times, and smooth machine operation. Their optimized fuel consumption helps reduce operating expenses without compromising performance.

Built for Productivity

Every JCB Excavator is designed to increase efficiency on the job site with features that help operators complete more work in less time.

Why Choose JCB Excavators?

JCB is recognized worldwide for engineering excellence, innovation, and dependable performance. Designed to withstand demanding working conditions, JCB Excavators offer high productivity, exceptional durability, fuel efficiency, and lower total cost of ownership, making them a trusted choice for contractors and equipment owners around the world.

Trusted Support from IFAD Group

As the authorized distributor of JCB Construction Equipment in Bangladesh, IFAD Group provides complete sales, genuine JCB spare parts, factory-trained service engineers, preventive maintenance, and dependable after-sales support. With a strong nationwide service network, IFAD Group ensures maximum machine uptime and long-term customer satisfaction.
